Alimak TPL & TPM
Alimak Transport Platforms (TPL & TPM)
The Ultimate Logistics Solution for Bulky Materials and Mid-Rise Construction.
Enclosed passenger hoists are built for speed, but what happens when your materials don’t fit through the door? Alimak Transport Platforms provide the wide-open deck space and heavy-duty ramps needed to seamlessly move oversized drywall pallets, scaffolding, large glazing units, and your work crews in a single trip.
Dual-Function Efficiency for Your Job Site
For low-to-medium rise developments, commercial renovations, and sprawling resort projects across the Caribbean, speed isn’t always the primary bottleneck-space is.
The Alimak TPL (Transport Platform for Personnel and Material) and TPM (Transport Platform for Materials) ranges offer a highly cost-effective alternative to traditional enclosed hoists. Operating on a robust rack and pinion mast system, these open-car platforms are specifically engineered for dual-functionality: safely elevating large teams of tradesmen alongside the awkwardly shaped, bulky materials they need to do their jobs.
Engineered for Heavy, Awkward Payloads
1. Oversized Loading Ramps
Stop breaking down pallets by hand. Our transport platforms feature wide, fold-down loading ramps. This allows a forklift or pallet jack to drive materials directly onto the platform deck at the ground level, and lets crews roll them straight off onto the working slab, drastically reducing manual handling injuries and cycle times.
2. Dual-Mode Operation (Personnel & Material)
The Alimak TPL features a smart dual-control system. When transporting materials only, it can operate at a higher speed (up to 24 m/min) to clear the loading dock quickly. When personnel are on board, a simple key switch shifts the platform into a regulated, code-compliant passenger speed (12 m/min) to ensure absolute worker safety.
3. Fast, Lightweight Installation

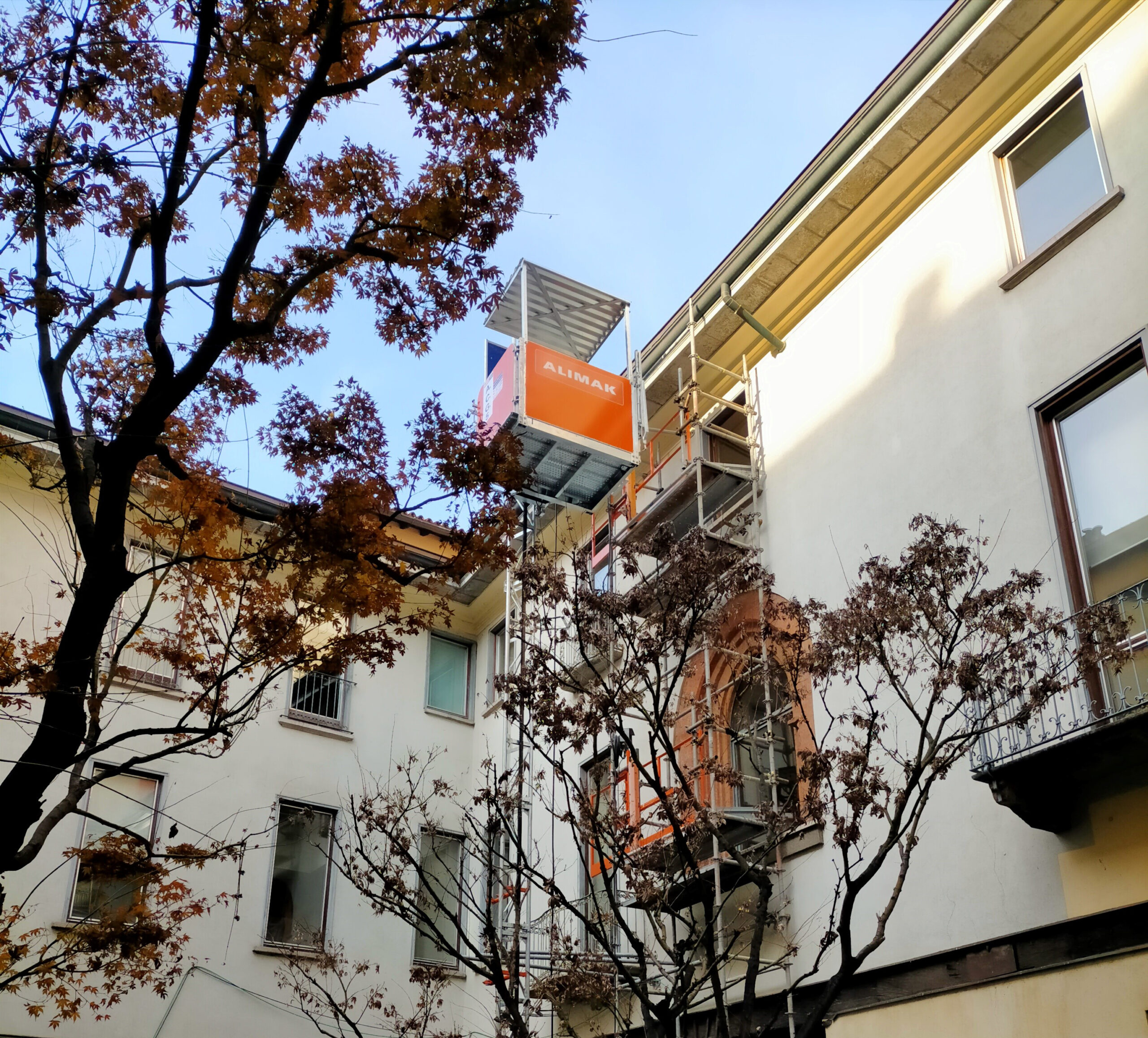

Compared to heavy-duty construction elevators, transport platforms utilize a lighter, highly adaptable mast system. They can be tied directly to the building slab or integrated seamlessly into existing scaffolding structures. This makes erection, dismantling, and relocation incredibly fast-ideal for dynamic job sites with multiple low-rise structures.
4. Cost-Effective Vertical Logistics
If your project is under 15 stories, investing in a high-speed Scando hoist might be overkill. Transport platforms provide the legendary safety and reliability of Alimak’s rack and pinion technology at a fraction of the operating cost, offering a superior ROI for mid-rise contractors.
Technical Specifications (Alimak TPL & TPM Ranges)
Bridge360 will assess your material flow and site layout to recommend the exact platform size and payload capacity for your build.
- Payload Capacity (TPL): 500 kg to 2,000 kg (Personnel and Materials)
- Payload Capacity (TPM): 1,300 kg to 3,200+ kg (Heavy Materials)
- Traveling Speed: 12 m/min (Personnel Mode) / 24 m/min (Material Mode)
- Platform Dimensions: Highly modular. Configurations range from compact 1.4m x 1.6m decks up to massive twin-mast 3.2m x 4.8m platforms.
- Drive System: Rack and pinion (Direct-On-Line or Frequency Controlled options).
- Power Supply: 3-phase, optimized for low starting currents.
- Compliance: Fully compliant with EN 16719 and OSHA safety guidelines for transport platforms.
Turnkey Material Logistics in the Caribbean
Coordinating the delivery and installation of heavy lifting equipment shouldn’t add stress to your project manager’s plate.
Partnering with Bridge360 guarantees:
Strategic Fleet Availability
We maintain a robust rental fleet of TPL and TPM units in our Dominican Republic hub, ready for immediate sea freight to your site.
Site-Specific Tie-In Engineering
Whether anchoring to a concrete slab or tying into complex scaffolding, our engineers provide safe, compliant installation plans.
Certified Regional Support
Our factory-trained technicians handle the complete erection, user training, and ongoing preventative maintenance throughout your rental period, ensuring zero unexpected downtime.
Stop Struggling with Bulky Materials
Streamline your site logistics and keep your interior finishing crews supplied. Contact Bridge360 today to reserve a Transport Platform for your next project.
