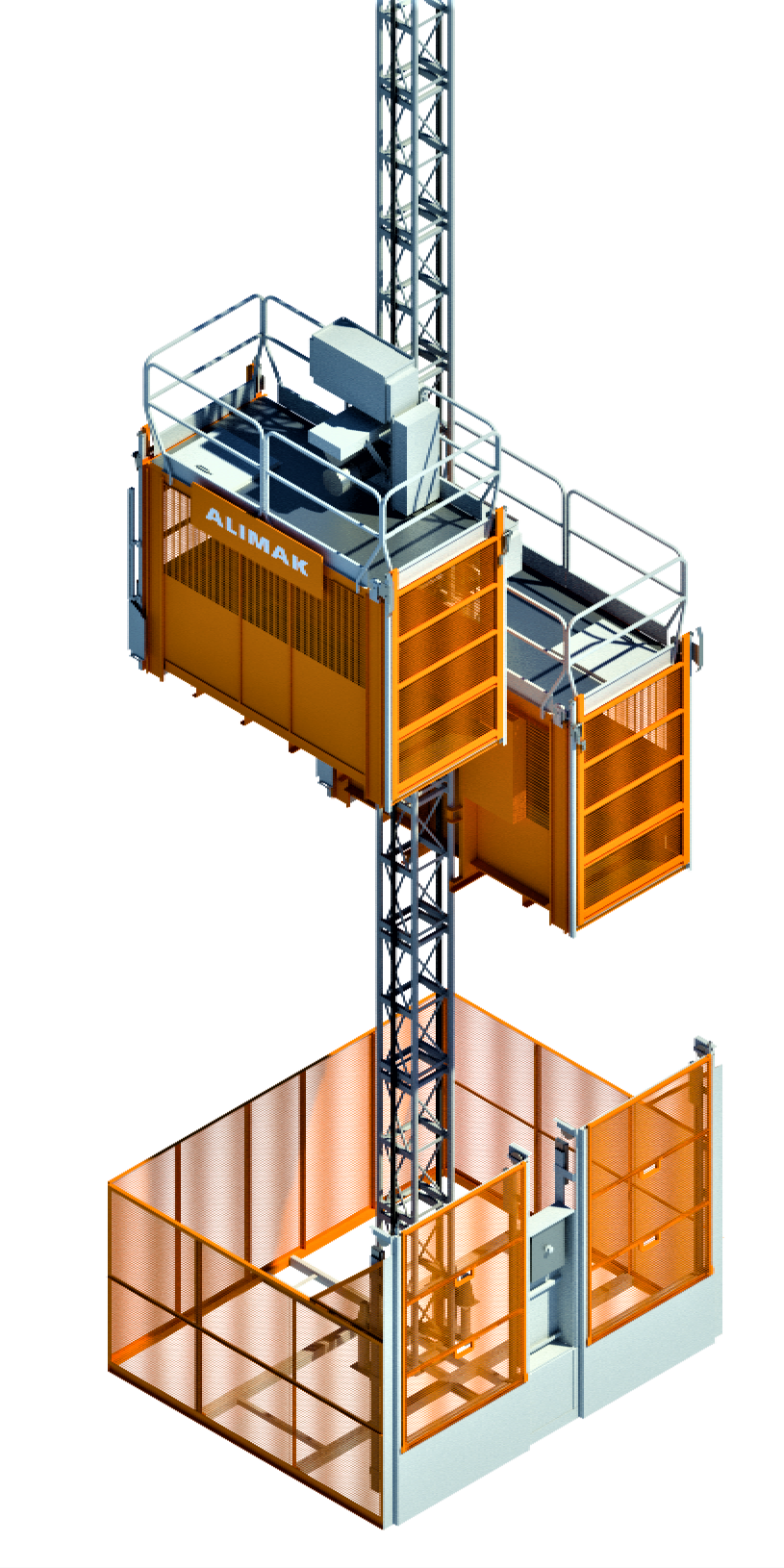

Alimak SC Series
Alimak SC Construction Hoist
The Adaptable, All-Purpose Vertical Access Solution.
Not every site requires a heavily customized mega-hoist, but every site requires absolute reliability. The Alimak SC range delivers the world-class rack and pinion technology you expect, engineered into a flexible, cost-effective, and highly efficient package designed for everyday construction demands.
Proven Technology Meets Cost-Effective Performance
For a wide variety of building projects-from low-rise commercial developments to high-rise residential towers-the Alimak SC offers an incredibly robust design.
Built around the tried and tested drive technology that made Alimak the global industry standard, the SC range provides a no-nonsense approach to vertical logistics. It easily transports up to 2,000 kg of materials and personnel, offering an exceptional return on investment for contractors who need a dependable, easy-to-operate workhorse without unnecessary complexity.
Engineered for Everyday Site Efficiency
1. Highly Adaptable to Any Project
The Alimak SC is designed to be the ultimate utility player on your job site. Available in multiple car sizes (up to 3.2 meters long), it accommodates large drywall pallets, heavy tool carts, and standard work crews (up to 16 people) with ease, adapting instantly to the daily changing needs of your project.
2. Low Cost of Ownership & Operation
For construction companies and rental fleets, the SC is a highly economical choice. It is engineered for low energy consumption and features a straightforward design that makes routine maintenance, assembly, and dismantling remarkably fast-saving you labor hours and generator fuel costs.
3. Modern Microprocessor Control
While it is built on rugged, traditional mechanics, the SC is equipped with a modern microprocessor hoist control system. It features intuitive Stop-Next-Landing (SNL) control, making it incredibly simple for operators to use while drastically reducing wait times across multiple floors.
4. Flexible Drive Options (FC or DOL)
Depending on your site’s power capabilities and height, the SC can be configured with either a Frequency Controlled (FC) motor for exceptionally smooth starts/stops and low starting currents, or a Direct-On-Line (DOL) motor for straightforward, rugged simplicity.
Technical Specifications (Alimak SC Range)
Bridge360 will help you select the ideal SC configuration (such as the popular SC 45/30 or SC 65/32) to match your site’s parameters.
- Payload Capacity: 2,000 kg (per car)
- Traveling Speed: 36 m/min (DOL) up to 90 m/min (FC High-Speed options)
- Max. Lifting Height: Easily scales from 150m to 300m+ depending on configuration.
- Car Dimensions: 1.4 m (W) x 3.0 m (L) or 1.5 m (W) x 3.2 m (L)
- Motor Control: Direct-On-Line (DOL) or Variable Frequency Control (FC)
- Voltage Supply: 380-500 V / 50-60 Hz, 3 Phase
- Safety Features: Alimak overspeed safety device, mechanical door interlocks.
Simple, Fast, and Supported Locally
The beauty of the Alimak SC is how quickly it can be deployed and operational on your Caribbean job site.
Partnering with Bridge360 guarantees:
Fast Turnaround
We ship the SC directly from our Dominican Republic hub, cutting out the transatlantic shipping delays of European suppliers.
Effortless Installation
The SC uses lightweight, high-strength galvanized steel mast sections and requires no special tools for erection, meaning our crews get your hoist running faster.
Regional Training & Support
We provide complete operational training for your site personnel and back up the equipment with our 24/7 regional maintenance network.
Get the Most Reliable Workhorse on Your Site
Equip your next project with the Alimak SC and experience hassle-free vertical logistics.
